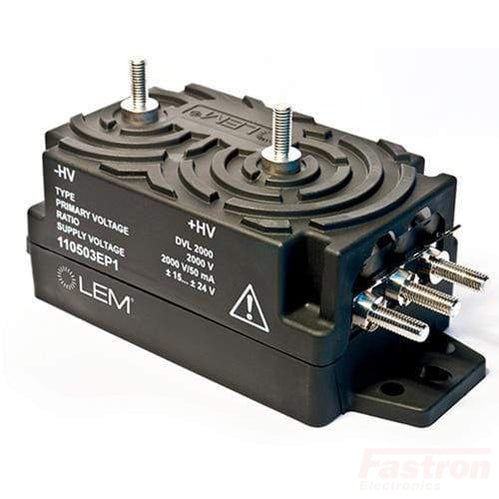

DV 2000/SP2 Digital Voltage Transducer - 2000V Input, ±15-24VDC, 50mA Output, 18.5kV Isolation for Power Monitoring & Industrial Automation
DV 2000/SP2 Digital Voltage Transducer - 2000V Input, ±15-24VDC, 50mA Output, 18.5kV Isolation for Power Monitoring & Industrial Automation

DV 2000/SP2 Digital Voltage Transducer - 2000V Input, ±15-24VDC, 50mA Output, 18.5kV Isolation for Power Monitoring & Industrial Automation

$860.2 $1564 -45% OFF

Free shipping on all orders over $50

7-15 days international

18 people viewing this product right now!

30-day free returns

Secure checkout

33243869

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

Description

LEM DV 2000/SP2 Digital Voltage Transducer, Vpn = 2000V, +/-15...24VDC, 50mA output, 18.5kV Isolation

Features

  • Bandwidth DC to 12kHz
  • Closed loop transducer using Hall effect
  • Digital Transducer (ASIC based)
  • Compact and versatile
  • Panel Mount
  • Insulated plastic case recognized according to UL 94-V0

Advantages

  • Very good linearity
  • High accuracy
  • Low temperature drift
  • Wide frequency bandwidth
  • Very low insertion losses
  • High immunity to external interference
  • Voltage overload capability
  • Low power consumption

Applications

  • Railway substation or locomotive
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications
  • Water Treatment Electronics
  • Drop in replacement for LV100-2000
Specification
LEM Part NumberDV 2000/SP2
TechnologyClosed Loop Hall Effect
ApertureNo Aperture
ROHSYes
Supply Voltage+/-15..24 VDC Bipolar, Isolated
Primary Nominal Voltage (RMS + DC)+/- 2000V
Measurement Range+/- 3000V
Output50 mA @Vpn
Isolation18.5 kV
BandwidthDC-13 kHz
Mounting StylePanel Mount
Operating Temperature Range-40°C / 85°C
Accuracy1%
Termination StyleM5 Screw
Unit Weight1000g
Factory Pack Quantity4



Datasheet
Application Notes
