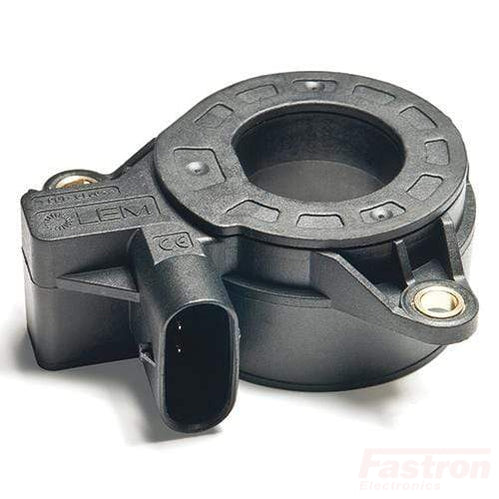

LEM DHAB S/145, Automotive Hall Effect Sensor, Dual Measurement Range, CH1: +/-50A CH2: +/-200A, Cable or Panel Mount, 22.5mm round aperture

Features

• Open Loop Transducer using Hall Effect
• Low Voltage Application
• Unipolar +5V Power Supply
• Primary Current Measuring Range up to +/-75A, and +/-1000A for Channel 2
• Maximum RMS primary admissable current: defined by busbar to have T° < +150°C
• Operating Temperature Range: -40°C < T° < +125°C
• Output Voltage: Full ratio-metric (in sensitivity and offset)
• Dual Channel Sensor for Wider Measurement Range and Redundancy

Advantages

• Good Accuracy for High and Low Current Range
• Good Linearity
• Low Thermal Offset Drift
• Low Thermal Sensitivity Drift
• Hermetic Package

Automotive Applications

• Battery Pack Monitoring
• Hybrid Vehicles
• EV and Utility Vehicles
